NEW: EWO GM Dual-Bleeder JB6 Brake Caliper – 100% Brand New (No Core Charge)

Stop scouring the junkyards for crusty cores or settling for questionable remanufactured parts. If you are building a dedicated crawler, restoring a Square Body Chevy Truck, or finishing a 1-Ton Axle Swap, you need reliable stopping power that doesn't require a trip to the local parts store for a core return. The EWO GM Dual-Bleeder JB6 Brake Caliper is the industry standard for high-output braking in a convenient, "bolt-on" package.

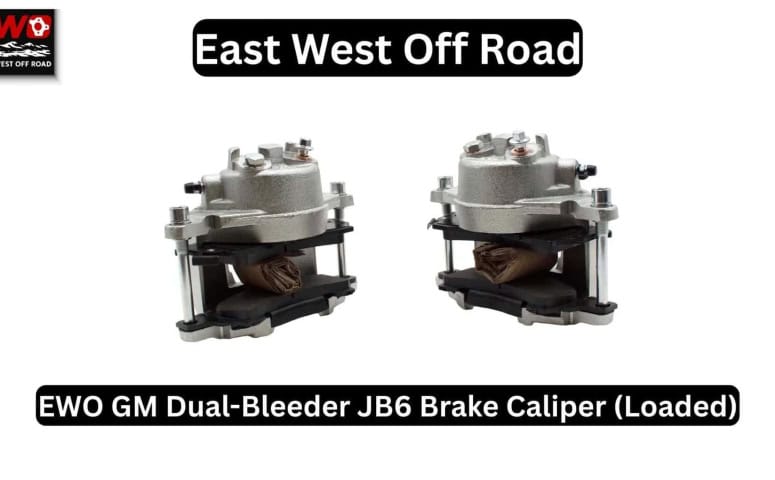

EWO GM Dual-Bleeder JB6 Brake Caliper

Heavy-Duty Engineering & Technical Specs

This is a New Casting Caliper finished in a clean silver Cast Iron Brake Caliper housing. Unlike standard single-side units, this Ambidextrous Caliper features a Dual Bleeder Screw Design, allowing it to be installed on either the Left (Driver) or Right (Passenger) side without trapped air issues.

Precision Clamping Power

74mm Piston Caliper

Features a massive 74mm (2-15/16”) piston diameter designed for heavy-duty GM 3/4 ton brake caliper applications. This Steel Piston Brake Caliper provides the hydraulic leverage needed to stop large off-road tires and heavy gear.

Industry-Standard Mounting

7.045” Mounting Span

Built as a Single Piston Floating Caliper with a standard 7.045” mounting span, this Slider Caliper bolts directly to the most popular conversion brackets on the market. It is a direct fit for those utilizing RuffStuff Specialties Brakes or East West Off Road Brake Parts.

No-Hassle Installation

No Core Charge Caliper

Save time and money. This is a 100% Brand New unit, which means it is a No Core Charge Caliper. You get a fresh casting without the headache of shipping your old grease-covered parts back to a warehouse.

Universal Compatibility & Performance

This off road brake caliper is the go-to choice for the GM 14 Bolt Disc Brake Conversion and the Dana 60 Rear Disc Swap. It is engineered to perform on the trail and the street, making it the perfect GM disc brake conversion caliper for Dana 44 HD and 10.5 Corporate Axle builds.

Perfect Fitment For:

• Chevrolet K20 Pickup & GMC K2500 (3/4-Ton 4WD).

• Chevy Suburban 2500 & C20 Pickup.

• K30 Single Rear Wheel 1-ton applications.

• GM RPO JB6 and GM RPO JD6 (Hydroboost) brake systems.

• Direct replacement for Cardone 18-4124, ACDelco 18FR596, and Raybestos FRC4124.

Loaded Caliper Assembly

What’s Included in the Box?

Each JB6 brake caliper loaded assembly comes fully equipped and ready for immediate installation.

Pre-Loaded Pads

Semi-Metallic Brake Pads

The unit comes pre-loaded with premium black Semi-Metallic Brake Pads using the common D52 Brake Pads (FMSI D52) profile. This GM Large Caliper Pads configuration is compatible with high-performance upgrades like Wilwood BP-10, Hawk HB103, Wagner MX52, and Performance Friction Carbon Metall.

Complete Hardware Kit

M10-1.5 Inlet & Banjo Bolts

No need to run to the hardware store. We include the M10-1.5 Inlet Metric Banjo Bolt, copper washers, and fresh slide pins. This is the same high-quality setup found in the EWO R2236, R2236-Kit-1, and RuffStuff R2236 kits.

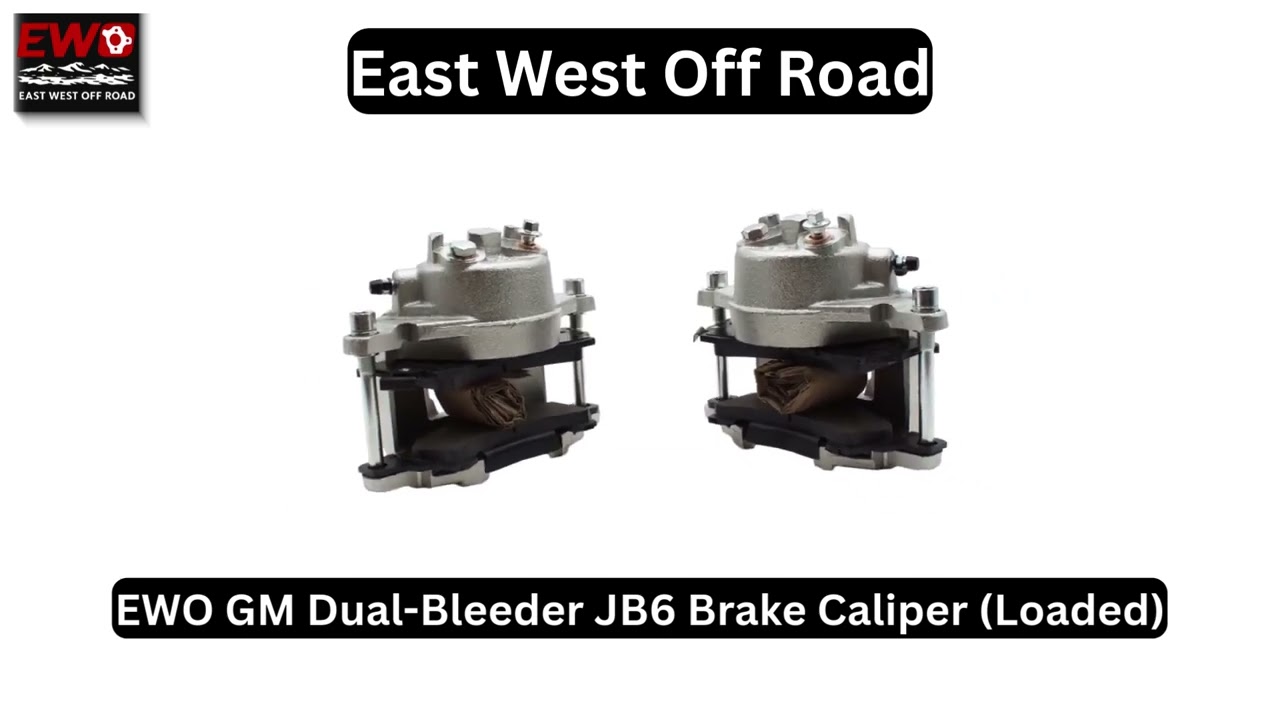

JB6 caliper with pads

Frequently Asked Questions

Will this fit a standard 14-bolt rear disc conversion?

Yes. This JB6 brake caliper loaded unit is the industry standard for the rear disc brake conversion GM owners prefer. It pairs perfectly with weld-on or bolt-on brackets designed for a 7.045" mounting span.

Can I use this for both the driver and passenger sides?

Absolutely. The GM dual bleeder brake caliper features an ambidextrous Dual Bleeder Caliper design. This allows you to flip the caliper to either side while keeping a bleeder screw at the highest point for easy maintenance.

Is this a remanufactured part?

No. This is a 100% New Casting Caliper. Every component is brand new, ensuring maximum reliability for your Chevrolet 3/4 Ton 4WD Front Caliper replacement or custom axle swap.

What is the advantage of the 2-15/16" Piston?

The 2-15/16" Piston size is significantly larger than "Metric" style calipers, providing superior clamping force which is essential for heavy rigs and oversized tires.

Ready to finish your build? Don't gamble with old hardware when it comes to your safety. Upgrade to the East West Off Road brake caliper today and get the stopping power your rig deserves.
